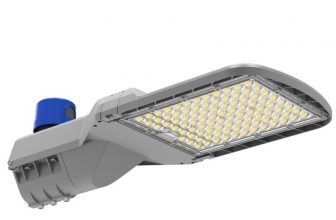

High quality Factory ip66 80W 100W Led Street Light

80w To 200W LED Street Light

High lumen: 110-150lm/w ( Lumileds Luxeon 3030 LEDs)
And 150-160lm/w (Lumileds Luxeon 5050/7070 LEDs)
Material:Aluminum, LED Chip, Len , Toughened Glass, Screw
CRI 70Ra, /80Ra,/90Ra
Meanwell Power Supply,Philips LED , inventronics driver brand optional
IP rating: IP66 and IK08
Ultra clean glass cover
Beam Angle:TYPE-2-70*150°，/TYPE-3-150*80°
5 years warranty
Budget LED Street Light suitable for urban lighting project tender

Wandan LED Product Details

Application s: City/town’s streets , roadway, Pavements, Squares and Schools, Residential area，Parks, Yards

Installation about Led street lighting requirements

T2 and T3 Which one is great for road lights

Manufacturer of urban lighting project tender Budget LED Street Light. Products include retrofit fixtures, alarms, canopy lights, high bay lighting, magnetic strip kits, LED tubes, LED troffers, refrigeration LED lights, floodlights, yard lights and more. Industries served are hazardous, horticulture, solar, residential, hospitality, industrial and commercial.

Technology DataAttentionapplicationFactory pictures

Model No	WD-JD1002-100W	WD-JD1003-150W
Lamp size	330325100mm	495320100MM
Watts	80-100W	120-150W
Luminous	110~160lm/w	110~160lm/w
LED Qtys	100/112/128pcs Luminleds 3030	150/168/192pcs Luminleds 3030
LED Qtys	32/48pcs Luminleds 5050	48/72pcs Luminleds 5050
LED Qtys	24/32 pcs Luminleds 7070	36/48 pcs Luminleds 7070
CCT	3000K, 4000K, 5000K,6000K	3000K, 4000K, 5000K,6000K
Input Voltage	AC100~277V	AC100~277V
Surge Protection	SP≥10KV/20KV/30KV	SP≥10KV/20KV/30KV
Temperature Range	-30°C +55°C	-30°C +55°C
Lens degree	70150/15080/50140/140140°	70150/15080/50140/140140°
Insulation Class	Class I	Class I
Lifetime	>50000Hours	>50000Hours
Protection Rating	IP66 &IK08	IP66 &IK08
Certificate	CE/RoHS	CE/RoHS
Warranty	5 years warranty	5 years warranty

Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
The lamp cannot be used in violation of any fire regulations.
Input product line, brown is “L”, blue is “N”, yellow-green is GND.
Be sure wiring is closed and prevent leakage when installing.
Be sure to disconnect power before installing, don’t construction with electricity.
