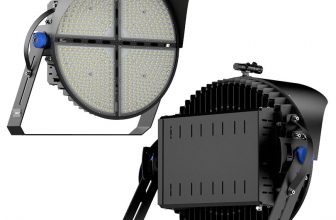

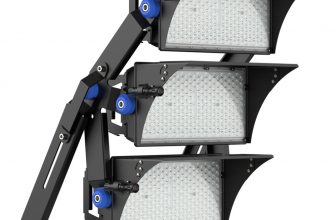

Floodlight Horse Arena Light Stadium Light

300W To 1000W 140lm~150/w LED Stadium Floodlight

140000－145000LM LED Stadium Floodlight

High lumen: 140lm~150/w
Chip: Philips 3030 LED
Meanwell ELG Driver
IP rating: IP65
Modular Design, Easy Installation & Maintenance
Efficient heat cooling
Power Factor:>0.90
CE RoHS Approved
Optical Lenses: 15/40/60/90/49*21/136*78°
Warranty: 5 years

Wandan LED Product Details

Applications: For General flood lighting, corridor lighting, security lighting, and rooftop lighting. Can also be used as a high bay.

Manufacturer of 140lm~150/w LED Stadium Floodlight made from pure aluminum material. Available with 300W To 1000W light options and ceiling, wall and pendant mounting options. Capable of lasting beyond 50,000 h. Features include temperature, weather, chemical, impact or corrosion resistant and energy-saving. Suitable for greenhouses, walk-in freezers, mine or highway tunnels, food processing and indoor or outdoor applications. Serves the agricultural, civil, irrigation, marine, mining, shipbuilding, wastewater treatment, chemical, oil and gas industries.

Technology DataLED Light DimensionApplication PlacesPackageAttention

Model：	WD-SL300W-A01	WD-SL400W-A02	WD-SL500W-A03	WD-SL600W-A04
Power:	300w	400w	500w	600w
Led Source:	Philips LUXEON 3030 2D	Philips LUXEON 3030 2D	Philips LUXEON 3030 2D	Philips LUXEON 3030 2D
Led Qty:	504pcs	672pcs	840pcs	1008pcs
Working voltage：	AC90-305V	AC90-305V	AC90-305V	AC90-305V
Beam angle:	15/40/60/90/4921/13678°	15/40/60/90/4921/13678°	15/40/60/90/4921/13678°	15/40/60/90/4921/13678°
Lumen：	42000－45000LM	56000-60000LM	70000-75000LM	84000－88000LM
Power Factor:	>0.90	>0.90	>0.90	>0.90
Correlated Color Temperature：	3000/4000/5000/6000K	3000/4000/5000/6000K	3000/4000/5000/6000K	3000/4000/5000/6000K
Color rendering index：	>75	>75	>75	>75
IP Rating:	IP65	IP65	IP65	IP65
Material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
Weight:	11Kg	13Kg	15Kg	17Kg

Model：	WD-SL700W-A05	WD-SL800W-A06	WD-SL900W-A07	WD-SL1000W-A08
Power:	700w	800w	900w	1000w
Led Source:	Philips LUXEON 3030 2D	Philips LUXEON 3030 2D	Philips LUXEON 3030 2D	Philips LUXEON 3030 2D
Led Qty:	1176pcs	1344pcs	1512pcs	1680pcs
Working voltage：	AC90-305V	AC90-305V	AC90-305V	AC90-305V
Beam angle:	15/40/60/90/4921/13678°	15/40/60/90/4921/13678°	15/40/60/90/4921/13678°	15/40/60/90/4921/13678°
Lumen：	98000－102000LM	112000-115000LM	126000－130000LM	140000－145000LM
Power Factor:	>0.90	>0.90	>0.90	>0.90
Correlated Color Temperature：	3000/4000/5000/6000K	3000/4000/5000/6000K	3000/4000/5000/6000K	3000/4000/5000/6000K
Color rendering index：	>75	>75	>75	>75
IP Rating:	IP65	IP65	IP65	IP65
Material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
Weight:	21Kg	25Kg	29Kg	32Kg

300W 140lm~150w LED Stadium Floodlight Dimension

LED flood light is mainly used in the single building, the historical building exterior lighting, the building inside the light through the lighting, indoor local lighting, green landscape lighting, billboard lighting, medical culture and other specialized facilities lighting, bars, dance halls and other entertainment Lighting and so on.

Item	WD-SL300W-A01	WD-SL400W-A02	WD-SL500W-A03	WD-SL600W-A04
Package Qty	1 PCS	1 PCS	1 PCS	1 PCS
GW	11 KG	13 KG	15 KG	17KG
Inner Box Size(mm)	630450190MM	630540190MM	630630190MM	740630190MM

Item	WD-SL700W-A05	WD-SL800W-A06	WD-SL900W-A07	WD-SL1000W-A08
Package Qty	1 PCS	1 PCS	1 PCS	1 PCS
GW	21 KG	25KG	29KG	32KG
Inner Box Size(mm)	820630190MM	920630190MM	1030620190MM	1120650190MM

Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
The lamp cannot be used in violation of any fire regulations.
Input product line, brown is “L”, blue is “N”, yellow-green is GND.
Be sure wiring is closed and prevent leakage when installing.
Be sure to disconnect power before installing, don’t construction with electricity.

Installation and schematic.
