50W To 600W Modular LED Tunnel Light

IP65&IK10 Modular LED Tunnel Light

  • High lumen: 120lm/w
  • Chip: Philips 3030 LED
  • Temperature:less than 65 degree
  • Energy saving system, saving 80% energy
  • Ambient temperature:-30 to 55degree Body
  • Good Color Rendering
  • Warm and cold color temperature are available
  • Good heat sink design
  • CE RoHS Approved
  • Beam Angle: 60°,90° ,120°,90*120,120°150°
  • Warranty: 5 years

Wandan LED Product Details

  • Housing adopted the extruded aluminum technology
  • Applications: For outdoor sports fields, squares, parks, streets, parking lots, etc
  • Material: Include Aluminum, LED Chip, Len , Toughened Glass, Screw ,
  • Driver option: Include Meanwell ,Factory own brand, Inventronics, or Specified brand (Note: Meanwell driver)

Manufacturer of directed Tunnel/floodlights with Modular Heatsink. Offered in 12000 lm ratings. Lamps are resistant to water and dust. Used in indoor, outdoor, emergency, restoration, agriculture, utility, mining, shipbuilding, cargo handling and warehouse applications. 5 year warranty is available.

Technology DataLED Light DimensionApplication PlacesPackageAttention
Model NoWD-SL50W-F01WD-SL100W-F01WD-SL150W-F01
Watts50W100W150W
LED SourcingLuminleds 3030Luminleds 3030 Luminleds 3030
LEDs Qntys64pcs128pcs192pcs
Luminous Efficiency120-130lm/w 120-130lm/w 120-130lm/w
Kelvin3000K, 4000K, 5000K,3000K, 4000K, 5000K, 3000K, 4000K, 5000K,
CRI≥75Ra≥75Ra ≥75Ra
Input VoltageAC100~277V AC100~277V AC100~277V
Surge ProtectionSP≥10KV/20KV optionalSP≥10KV/20KV optional SP≥10KV/20KV optional
Temperature Range -30°C   +55°C -30°C   +55°C -30°C   +55°C
Insulation ClassClass I Class I Class I
Lifetime>85000Hours >85000Hours >85000Hours
Protection RatingIP66 &IK08 IP66 &IK08 IP66 &IK08
Certificate CE/RoHS  CE/RoHS  CE/RoHS
Warranty5 years warranty 5 years warranty 5 years warranty
Model NoWD-SL200W-F01WD-SL250W-F01WD-SL300W-F01
Watts200W250W300W
LED SourcingLuminleds 3030 Luminleds 3030 Luminleds 3030
LEDs Qntys256pcs320pcs384pcs
Luminous Efficiency 120-130lm/w 120-130lm/w 120-130lm/w
Kelvin3000K, 4000K, 5000K, 3000K, 4000K, 5000K, 3000K, 4000K, 5000K,
CRI ≥75Ra ≥75Ra ≥75Ra
Input Voltage AC100~277V AC100~277V AC100~277V
Surge ProtectionSP≥10KV/20KV optional SP≥10KV/20KV optional SP≥10KV/20KV optional
Temperature Range -30°C   +55°C -30°C   +55°C -30°C   +55°C
Insulation Class Class I Class I Class I
Lifetime >85000Hours >85000Hours >85000Hours
Protection Rating IP66 &IK08 IP66 &IK08 IP66 &IK08
Certificate  CE/RoHS  CE/RoHS  CE/RoHS
Warranty 5 years warranty 5 years warranty 5 years warranty
50W To 600W Modular LED Tunnel Light dimensions
50W To 600W Modular LED Tunnel Light dimensions

General flood lighting, corridor lighting, security lighting, and roof top lighting. Can also be used as a high bay. System Light Efficacy 120 LPW. Flexible, Modular Design. Multiple Choice of Optical Lenses. Easy Installation & Maintenance.

ItemWD-SL50W-F01WD-SL100W-F01WD-SL150W-F01WD-SL200W-F01
Package Qnty1 PC1 PC1 PC1 PC
Net Weight1.7 KGS3 KGS4.1 KGS5.1 KGS
Gross Weight2.1 KGS3.5 KGS4.8 KGS6.2 KGS
Carton Box Size(mm)370*190*150MM 380*270*160MM380*360*160MM420*380*160MM

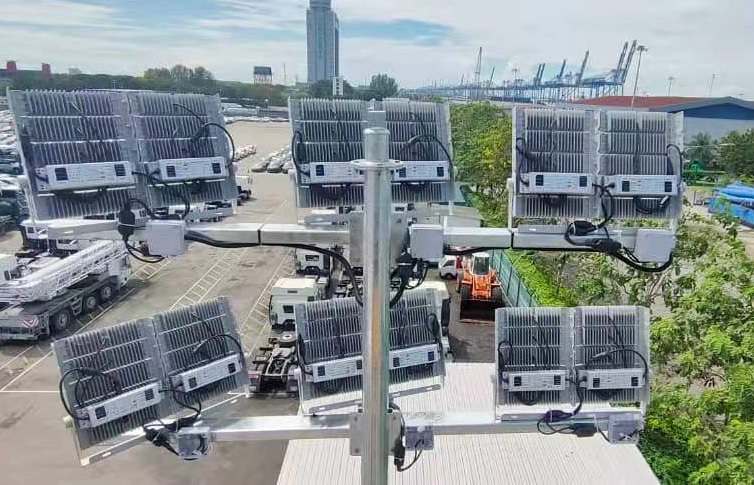

50W To 600W Modular LED Tunnel Light application-scenarios Package
  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz,Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N”, yellow-green is GND.
  • Be sure wiring is closed and prevent leakage when installing.
  • The lamp cannot be used in violation of any fire regulations.
Installation and schematic.
Installation and schematic.
