80W LED Outdoor Courtyard Wall Lamp

100W LED wall pack light

  • Model: WD-RSD-80W-B3
  • Input voltage: 220 (V)
  • Packaging process: patch type
  • LED chip brand: Epistar/Wafer Optoelectronics
  • Luminous flux: 9600 (lm)
  • Color temperature: 5000 (K)
  • Power factor: 0.95
  • Luminaire luminous efficiency: 120 (lm/w)
  • Color rendering index: 75
  • Luminous angle: 120 (degrees)
  • Temperature rise: — (K)

Wandan LED Product Details

  • Dimming: Yes
  • Shell material: aluminum alloy
  • Life: 50000 (H)
  • Certification: EU CE certification
  • Protection grade: IP65
  • cCT:2700K SW / 300oK ww / 410OK NW/ 5000K DW/5700K CW
  • Voltage:100-277VAC/50-60Hz 200-480VAC/50-60Hz available
  • Aluminum alloy fin type radiator expands the heat dissipation area, which is more conducive to heat dissipation of lamps and improves lamp life
  • No radio frequency interference, no IR/UV radiation, no mercury pollution, 50000 hours of service life. It saves about 80% energy compared to traditional lamps.
  • Use brand 3030 led and brand power supply. Special circuit design, even if a single LED fails, does not cause the entire lamp to not light up
Technology DataApplication Scenarioproducts sizeInstallation Notes
coverSpecial:Flat PC cover(170lm/w).Special:Flat PC cover(170lm/w).
Luminous Efficacy130lm/w130lm/w
Peration Temp.-40 to+45℃-40 to+45℃
Life Span50.000 hours at 25℃50.000 hours at 25℃
Beam Angle120° 120°
DriverUL listed power supplyUL listed power supply
Luminous Flux5200lm780olm
ReplacementHPS 125WHPS 175W
Warranty5 Years5 Years
80W LED Outdoor Courtyard Wall Lamp Application Scenario
80W LED Outdoor Courtyard Wall Lamp Application Scenario
80W LED Outdoor Courtyard Wall Lamp products size
80W LED Outdoor Courtyard Wall Lamp Installation Notes

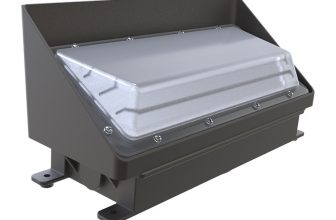

The Packaging Of American Style 100W LED wall pack light

Our LED high bay light including linear high bay, round high bay adopts new materials(graphene) and new technology(POB). The light efficacy is up to 160lm/W~190lm/W, which is ideal replacements for 250W~600W metal halide fixtures. Intelligent control can be supported to provide the energy-efficient solution for your factories, warehouses, hangars, etc.
High-quality Led street light wholesale from Wandan Lighting. Contact us for preferential price from leading led street light manufacturer in China. There are three types in LED street light with new technology, isolated driver, integrated driver and solar system. All of them adopts 3030 or 5050 LED chip and professional roads lighting optical lens with high efficiency(160lm/W) and uniform light. Various wattages from 10W to 500W, which suitable for 3-12M poles, and kinds of roads lighting, including the off-grid area.
LED Flood Light is designed for outdoor and indoor lighting purpose, and helps to improve visibility, enhance safety, and cut down energy consumption. Innovations and leading technologies can always be found in every of the flood lights, and that’s exactly what forms their unrivaled performance. Choose from Wandan portfolios, light better, save remarkably, and enjoy the great durability.
Wandan Lighting offer popular led stadium lights to meet the different types led lighting demand of the gymnasium (football, basketball, baseball, tennis, soccer) and the arena applications, keeping enough light to illuminate these sport places while reducing the light scattering that causes light pollution. The led lights save up to 88% in energy consumption and last more than 60,000 hours. High-quality radiators reduce heat generation, thus reducing the load on air conditioners. What's more, the 4000k color temperature and 5000K white color temperature are the favorite bright options.
