Wandan® Lighting has built a reputation for delivering top-quality LED light fixtures at competitive prices. Wandan offers you an extensive range of Industrial & Commercial lighting products with a wide variety of lighting solutions for indoor and outdoor use.Free Quote!

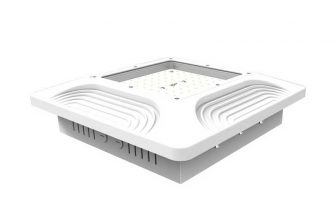

IP67 LED Canopy Lights Use For Parking Lot And Garage

LED Canopy Light For Garage

  • Model: WD-CSD
  • Installation size: 314314 (mm)
  • Installation method: Embedded
  • Voltage: 277 (V)
  • Protection class: IP67
  • Power factor: 0.95
  • Luminous flux: 13200 (LM) Light source:
  • SMD lamp beads Control system: GPRS
  • Service life: 50000 (H)
  • Appearance size: 314314*95 (mm)

Wandan LED Product Details

Wandan’s LED Canopy lamp adopts patented professional high color rendering index LED lamp beads, scientifically designed lamp bead arrangement scheme, so that the light is more uniform and purer. It is suitable for the lighting needs of high-bay factories, workshops, warehouses, logistics centers, exhibition halls, stadiums, etc., a whole piece of all-aluminum base light board, which greatly improves the heat dissipation efficiency, and the whole light is guaranteed for 5 years.

  • Shell Material: Aluminum
  • Product weight: 5000 (g)
  • Lighting angle: 120
  • Luminous efficiency: 110lm/w
  • Color adjustable: no
  • Brightness adjustable: no
  • Color Temperature:2700K Sw / 3000K wW / 410OK NW / 500OK DW / 5700K Cw
  • Voltage:100-277VAC/50-60HZ 200-480VAC available
  • Input Line Position:Side outlet (standard) or middle bottom outlet
Technology DataInstallation NotesLED Light DimensionsTest Data
Power 5ow 75W10ow12ow
ModelWD-CSD-50W-HWD-CSD-75W-HWD-CSD-10OW-HWD-CSD-120W-H
Luminous flux550olm8250lm1100olm13200lm
ReplaceableHPS 180WHPS 20owHPS 30owHPS 400w
ChipsSMD SMD SMD SMD
Glow Effect >110lm/w >110lm/w >110lm/w >110lm/w
Operating Temperature -40 to +45℃ -40 to +45℃ -40 to +45℃ -40 to +45℃
Color Rendering >80 >80 >80 >80
Use Life50,000 hours at 25℃50,000 hours at 25℃50,000 hours at 25℃50,000 hours at 25℃
Power SupplyUL certified power supplyUL certified power supplyUL certified power supplyUL certified power supply
Beam Angle 120 120 120 120
Power Factor >0.95 >0.95 >0.95 >0.95
Warranty5 Years 5 Years 5 Years 5 Years
10ow

*Warning: Be sure to cut off the power before installation to avoid electric shock and endanger life safety. Installation height higher than 1.2 meters, electrical connection – 100-240V/277VAC. 50/60HZ phase-to-neutral connection

Bracket installation
Bracket Installation
Hook Installation
Hook Installation
LED Light Dimensions IP67 LED Canopy Lights Use For Parking Lot And Garage
Test Data For CPL
