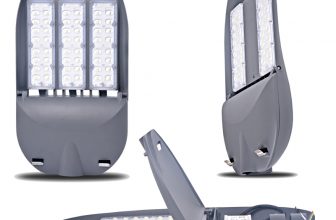

LED Street Light With High Transparent Tempered Glass

50W To 200W LED Flood Light Wholesale

High quality Lumiled Luxeon Chips 3030 in products
Wandan factory own brand top quality LED driver.
Die-casting housing, high transparent tempered glass
Material： Aluminum, LED Chip, Lens , Tempered glass, Screws；
65000 hours lifespan for minimum
Input voltage: 100-277Vac; 50/60Hz
Protection: IP66, IK08
Spare parts for choice
10kv SPD, 1-10V, DAL, Dimming Driver, Electronic Switch, 5 years warranty

Wandan LED Product Details

Applications: City/town’s streets , roadway, Pavements, Squares and Schools, Residential area，Parks, Yards

Custom manufacturer of outdoor lighting products including Led Street Light. Fixtures With High Transparent Tempered Glass,it mounted to tenon with stainless steel allen head set screws. Fixture finish consists of phosphate acid etching & top coating with thermoset TGIC super polyester powder. Industries served include municipalities, utilities, electrical distributors, contractors, & developers.

Technology DataApplication PlacesPackageAttentionDownload Spec

Model No	WD-ZCLD50W-R01	WD-ZCLD100W-R02
Size	485210 70mm	538238102mm
Pole Diameters	60mm	60mm
Watts optional	40W–60W	80W–100W
Luminous	130lm/W use Luminleds 3030	130lm/W use Luminleds3030
LED Qntys	60pcs Lumileds 3030	120pcs Luminleds 3030
Kelvin	3000K, 4000K, 5000K, 6000K	3000K, 4000K, 5000K, 6000K
LED option	Luminleds3030/Epistar 3030	Luminleds3030/Epistar 3030
CRI	≥70Ra	≥70Ra
Input Voltage	AC100~277V	AC100~277V
Surge Protection	>4KV; >6KV; >10KV	>4KV; >6KV; >10KV
Working Temperature Range	-30°C + 55°C	-30°C + 55°C
Insulation Class	Class I(Class II optional)	Class I(Class II optional)
Lifespan	>85000Hours	>85000Hours
IP Level	IP66	IP66
Certificate	CE/ RoHS /ERP	CE/ RoHS /ERP
Warranty	5 years warranty	5 years warranty

Model No	WD-ZCLD150W-R03	WD-ZCLD200W-R04
Size	602276105mm	697311112mm
Pole Diameters	60mm	60mm
Watts optional	120W–150W	200W–250W
Luminous	130lm/W use Luminleds3030	130lm/W use Luminleds3030
LED Qntys	180pcs Luminleds3030	240pcs Luminleds3030
Kelvin	3000K, 4000K, 5000K, 6000K	3000K, 4000K, 5000K, 6000K
LED option	Luminleds3030/Epistar 3030	Luminleds3030/Epistar 3030
CRI	≥70Ra	≥70Ra
Input Voltage	AC100~277V	AC100~277V
Surge Protection	>4KV; >6KV; >10KV	>4KV; >6KV; >10KV
Working Temperature Range	-30°C + 55°C	-30°C + 55°C
Insulation Class	Class I(Class II optional)	Class I(Class II optional)
Lifespan	>85000Hours	>85000Hours
IP Level	IP66	IP66
Certificate	CE/ RoHS /ERP	CE/ RoHS /ERP
Warranty	5 years warranty	5 years warranty

Wandan Led Roadway Light widely used in all kinds of road lighting: expressway, Trunk Road and Welcome Road、main roads to government agencies and large public buildings 、road of downtown and Business center secondary main road, branch, residential roads, and sidewalk, also can be used in general building, square, goods yard, and scenic spot.Can be installed on the lamp-post of 4m-6m.

Item	WD-ZCLD50W-R01	WD-ZCLD100W-R02	WD-ZCLD150W-R03	WD-ZCLD200W-R04
Package Qty	1 PCS	1 PCS	1 PCS	1 PCS
GW	4.0Kg	4.7Kg	6.2Kg	7.5Kg
Inner Box Size(mm)	545x260x155mm	600x290x155mm	660x330x155mm	740x340x155mm

Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
The lamp cannot be used in violation of any fire regulations.
Input product line, brown is “L”, blue is “N”, yellow-green is GND.
Be sure wiring is closed and prevent leakage when installing.
Be sure to disconnect power before installing, don’t construction with electricity.
