Wandan® Lighting has built a reputation for delivering top-quality LED light fixtures at competitive prices. Wandan offers you an extensive range of Industrial & Commercial lighting products with a wide variety of lighting solutions for indoor and outdoor use.Free Quote!

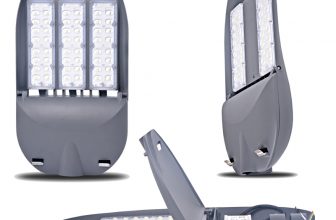

LED Street Light With High Transparent Tempered Glass

50W To 200W LED Flood Light Wholesale

  • High quality Lumiled Luxeon Chips 3030 in products
  • Wandan factory own brand top quality LED driver.
  • Die-casting housing, high transparent tempered glass
  • Material: Aluminum, LED Chip, Lens , Tempered glass, Screws;
  • 65000 hours lifespan for minimum
  • Input voltage: 100-277Vac; 50/60Hz
  • Protection: IP66, IK08
  • Spare parts for choice
  • 10kv SPD, 1-10V, DAL, Dimming Driver, Electronic Switch, 5 years warranty

Wandan LED Product Details

Applications: City/town’s streets , roadway,  Pavements, Squares and Schools, Residential area,Parks, Yards

Custom manufacturer of outdoor lighting products including Led Street Light. Fixtures With High Transparent Tempered Glass,it mounted to tenon with stainless steel allen head set screws. Fixture finish consists of phosphate acid etching & top coating with thermoset TGIC super polyester powder. Industries served include municipalities, utilities, electrical distributors, contractors, & developers.

Technology DataApplication PlacesPackageAttentionDownload Spec
Model NoWD-ZCLD50W-R01WD-ZCLD100W-R02
Size485*210 *70mm538*238*102mm
Pole Diameters60mm60mm
Watts optional40W60W80W100W
Luminous130lm/W use Luminleds 3030130lm/W use Luminleds3030
LED Qntys60pcs Lumileds 3030120pcs Luminleds 3030
Kelvin3000K, 4000K, 5000K, 6000K3000K, 4000K, 5000K, 6000K
LED option Luminleds3030/Epistar 3030Luminleds3030/Epistar 3030
CRI ≥70Ra ≥70Ra
Input VoltageAC100~277V AC100~277V
Surge Protection>4KV; >6KV; >10KV>4KV; >6KV; >10KV
Working Temperature Range -30°C +  55°C  -30°C +  55°C
Insulation Class Class I(Class II optional)Class I(Class II optional)
Lifespan >85000Hours >85000Hours
IP LevelIP66 IP66
Certificate CE/ RoHS /ERP CE/ RoHS /ERP
Warranty 5 years warranty 5 years warranty
Model NoWD-ZCLD150W-R03WD-ZCLD200W-R04
Pole Diameters60mm60mm
Watts optional120W150W200W250W
Luminous130lm/W use Luminleds3030130lm/W use Luminleds3030
LED Qntys180pcs Luminleds3030240pcs Luminleds3030
Kelvin3000K, 4000K, 5000K, 6000K 3000K, 4000K, 5000K, 6000K
LED option Luminleds3030/Epistar 3030 Luminleds3030/Epistar 3030
CRI  ≥70Ra ≥70Ra
Input Voltage AC100~277V AC100~277V
Surge Protection>4KV; >6KV; >10KV >4KV; >6KV; >10KV
Working Temperature Range  -30°C +  55°C  -30°C +  55°C
Insulation Class Class I(Class II optional) Class I(Class II optional)
Lifespan  >85000Hours >85000Hours
IP Level IP66 IP66
Certificate  CE/ RoHS /ERP CE/ RoHS /ERP
Warranty  5 years warranty 5 years warranty
Wandan Led Roadway Light widely used in all kinds of road lighting: expressway, Trunk Road and Welcome Road、main roads to government agencies and large public buildings 、road of downtown and Business center secondary main road, branch, residential roads, and sidewalk, also can be used in general building, square, goods yard, and scenic spot.Can be installed on the lamp-post of 4m-6m.
Package Qty1 PCS1 PCS1 PCS 1 PCS
Inner Box Size(mm)545x260x155mm600x290x155mm660x330x155mm740x340x155mm
  • Product working voltage is AC100~277V,50/60Hz,Please do not exceed the working voltage range.
  • The lamp cannot be used in violation of any fire regulations.
  • Input product line, brown is “L”,  blue is “N”, yellow-green is GND.
  • Be sure wiring is closed and prevent leakage when installing.
  • Be sure to disconnect power before installing, don’t construction with electricity.
Installation and schematic.

Our LED high bay light including linear high bay, round high bay adopts new materials(graphene) and new technology(POB). The light efficacy is up to 160lm/W~190lm/W, which is ideal replacements for 250W~600W metal halide fixtures. Intelligent control can be supported to provide the energy-efficient solution for your factories, warehouses, hangars, etc.
High-quality Led street light wholesale from Wandan Lighting. Contact us for preferential price from leading led street light manufacturer in China. There are three types in LED street light with new technology, isolated driver, integrated driver and solar system. All of them adopts 3030 or 5050 LED chip and professional roads lighting optical lens with high efficiency(160lm/W) and uniform light. Various wattages from 10W to 500W, which suitable for 3-12M poles, and kinds of roads lighting, including the off-grid area.
LED Flood Light is designed for outdoor and indoor lighting purpose, and helps to improve visibility, enhance safety, and cut down energy consumption. Innovations and leading technologies can always be found in every of the flood lights, and that’s exactly what forms their unrivaled performance. Choose from Wandan portfolios, light better, save remarkably, and enjoy the great durability.
Wandan Lighting offer popular led stadium lights to meet the different types led lighting demand of the gymnasium (football, basketball, baseball, tennis, soccer) and the arena applications, keeping enough light to illuminate these sport places while reducing the light scattering that causes light pollution. The led lights save up to 88% in energy consumption and last more than 60,000 hours. High-quality radiators reduce heat generation, thus reducing the load on air conditioners. What's more, the 4000k color temperature and 5000K white color temperature are the favorite bright options.
