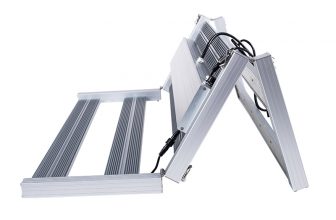

480W Octopus Industrial Hemp Grow Light

Octopus Grow Light

Product Model: BY-ZWZZ
Lamp power: 480W/640W/800W/1000W
Input voltage: 220V/380V
Light source brand: Sumsung
Power brand: Meanwell
Life:>50,00ohrs
Warranty: 3 years
Lamp size: 1200x1050mm
Net weight: 15kg(480W), 17kg(640W),19kg(800W), 21kg(1000W)
Design life: 50000H

Wandan LED Product Details

PFF: 1632μmole/s(480W),2176μmole/s(640W),2720μmole/s(800W),3264μmole/s(1000）
Full-spectrum design, suitable for the growth of all plants;
The photosynthetic efficiency is as high as 2.8μmole/J, high light efficiency, and more power saving;
Maintenance-free, reducing the cost of use;
Long service life, 3 years warranty for the whole lamp.

Samsung lm301b & Osram 660nm

Use Samsung Im301b with the most efficient umol output on the market and Osram 660nm lamp beads (optional), place them evenly, give you better light distribution, and create a uniform plant canopy. According to customer’s requirement, we can also use Im301h and cree xpe leds or add UV and IRled. At the same time, we also have more high-PPF light efficiency solutions for customers to choose from.

Excellent Thermal Performance

Unique appearance and sturdy design, using 6063 pure aluminum material, each radiator weighs more than 1KG, to ensure that the lamp body has a good heat dissipation effect, so that the lamp body can still maintain a relatively low temperature after a long time of work, after 30,000 hours of use The light attenuation is less than 3%, which ensures the long life of the lamps and meets the stringent requirements of commercial planting projects for lamps.

Inventronics Drive Power

Use the Inventronics drive power supply, which is more suitable for commercial engineering use, with a rated input voltage of 120-277V, and we can also provide 277-480V input voltage to meet the needs of larger engineering projects. In addition, we can also provide extension cables between the driver and the light, because some growers prefer to install the driver outside the grow room, or not installed on the light fixture, or on the side.

External Control

This 640W grow light is equipped with an external RJ14 interface and cable, compatible with our controller, this controller allows you to connect up to 200 grow lights, dimming, timing, Turn on or off the lamps, allowing you to control the plant growth lights freely, which brings great convenience to commercial growers.

Control Mode

Knob dimming+RJ interface (wire dimming)

Settings OnOff, Timer, Dimming Adjustment PPFD

Technology DataAttentionparameterSpectrum & PPFD Testgroup control

Model	BY-ZWZZ-0612	BY-ZWZZ-0812	BY-ZWZZ-1012	BY-ZWZZ-1212
Power	480W ± 5% /6 Bar	640W ± 5% /8Bar	80OW ± 5% /10 Bar	1000W ± 5% /12 Bar
Size	1200*1050mm	1200*1050mm	1200*1050mm	1200*1050mm
Weight	15kg	17kg	19kg	21kg
PPF:	Up to 1632umol/s	Up to 2176umols	Up to 2720umols	Up to 3264umolls
Efficiency	Up to 2.8umolJ	Up to 2.8umolJ	Up to 2.8umol/J	Up to 2.8umolJ

Product working voltage is AC100~277V,50/60Hz，Please do not exceed the working voltage range.
The lamp cannot be used in violation of any fire regulations.
Input product line, brown is “L”, blue is “N”, yellow-green is GND.
Be sure wiring is closed and prevent leakage when installing.
Be sure to disconnect power before installing, don’t construction with electricity.

Product Size: _	47.2″×41.3″×3.93″ 1200mm×1050mm×100mm
Net Weight Of The Product:	36.2lbs/16.5kg
Gross Weight Of Product:	44lbs/20kg
Package Size:	1280mm×310mm×200mm

Quality

Warranty	3 years
Heat Dissipation	100% passive
Waterproof Level:	IP65
Operating Temperature:	-20°C-40°C
Life:	50000 hours

Warranty

CCT:	Standard 3000k & 660nm
LED Brand:	Osram/Cree/Samsung
Beam Angle:	120°
Irradiation Range:	5×5/1500mm×1500mm
PPF:	1904umol/s
PPFD @18″:	896umol/m2/s avg. over 4×4′
PPFD@24″:	750umol/m2/s avg. over 4×4″
Efficiency:	2.8umolJ
Installation height:	More than 30-60cm

Performance

Voltage:	Standard AC100-305V 277-480V optional;
Input Power:	Standard 680W±5%
Overload Protection:	6kv
Power Factor:	0.96
Light Modulator:	0-10v Dimming knob
Power Cord Length:	Standard 1.5m

Power

Advantages for dimmable electronic ballast products

No switchboard is required.
Easy and safe installation (low voltage device)
prevent short circuit
Dual Temperature Safety Features
Control up to 100 horticultural lights
Display output as W or %
Temperature setting automatic shutdown
